ServiceOperationCenter

azure-23/Item/NewIcons/ServiceOperationCenter

include('azure-23/Item/NewIcons/ServiceOperationCenter')
Illustration ServiceOperationCenter ServiceOperationCenterCard ServiceOperationCenterGroup
illustration for Illustration illustration for ServiceOperationCenter illustration for ServiceOperationCenterCard illustration for ServiceOperationCenterGroup

Sprites

The item provides the following sriptes:

  • <$ServiceOperationCenterXs>
  • <$ServiceOperationCenterSm>
  • <$ServiceOperationCenterMd>
  • <$ServiceOperationCenterLg>

ServiceOperationCenter

Load remotely

@startuml
' configures the library
!global $LIB_BASE_LOCATION="https://raw.githubusercontent.com/tmorin/plantuml-libs/master/distribution"

' loads the library's bootstrap
!include $LIB_BASE_LOCATION/bootstrap.puml

' loads the package bootstrap
include('azure-23/bootstrap')

' loads the Item which embeds the element ServiceOperationCenter
include('azure-23/Item/NewIcons/ServiceOperationCenter')

' renders the element
ServiceOperationCenter('ServiceOperationCenter', 'Service Operation Center', 'an optional tech label', 'an optional description')
@enduml

Load locally

@startuml
' configures the library
!global $INCLUSION_MODE="local"
!global $LIB_BASE_LOCATION="../../.."

' loads the library's bootstrap
!include $LIB_BASE_LOCATION/bootstrap.puml

' loads the package bootstrap
include('azure-23/bootstrap')

' loads the Item which embeds the element ServiceOperationCenter
include('azure-23/Item/NewIcons/ServiceOperationCenter')

' renders the element
ServiceOperationCenter('ServiceOperationCenter', 'Service Operation Center', 'an optional tech label', 'an optional description')
@enduml

ServiceOperationCenterCard

Load remotely

@startuml
' configures the library
!global $LIB_BASE_LOCATION="https://raw.githubusercontent.com/tmorin/plantuml-libs/master/distribution"

' loads the library's bootstrap
!include $LIB_BASE_LOCATION/bootstrap.puml

' loads the package bootstrap
include('azure-23/bootstrap')

' loads the Item which embeds the element ServiceOperationCenterCard
include('azure-23/Item/NewIcons/ServiceOperationCenter')

' renders the element
ServiceOperationCenterCard('ServiceOperationCenterCard', 'Service Operation Center Card', 'an optional description')
@enduml

Load locally

@startuml
' configures the library
!global $INCLUSION_MODE="local"
!global $LIB_BASE_LOCATION="../../.."

' loads the library's bootstrap
!include $LIB_BASE_LOCATION/bootstrap.puml

' loads the package bootstrap
include('azure-23/bootstrap')

' loads the Item which embeds the element ServiceOperationCenterCard
include('azure-23/Item/NewIcons/ServiceOperationCenter')

' renders the element
ServiceOperationCenterCard('ServiceOperationCenterCard', 'Service Operation Center Card', 'an optional description')
@enduml

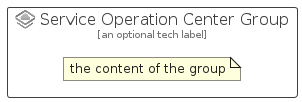

ServiceOperationCenterGroup

Load remotely

@startuml
' configures the library
!global $LIB_BASE_LOCATION="https://raw.githubusercontent.com/tmorin/plantuml-libs/master/distribution"

' loads the library's bootstrap
!include $LIB_BASE_LOCATION/bootstrap.puml

' loads the package bootstrap
include('azure-23/bootstrap')

' loads the Item which embeds the element ServiceOperationCenterGroup
include('azure-23/Item/NewIcons/ServiceOperationCenter')

' renders the element
ServiceOperationCenterGroup('ServiceOperationCenterGroup', 'Service Operation Center Group', 'an optional tech label') {
    note as note
        the content of the group
    end note
}
@enduml

Load locally

@startuml
' configures the library
!global $INCLUSION_MODE="local"
!global $LIB_BASE_LOCATION="../../.."

' loads the library's bootstrap
!include $LIB_BASE_LOCATION/bootstrap.puml

' loads the package bootstrap
include('azure-23/bootstrap')

' loads the Item which embeds the element ServiceOperationCenterGroup
include('azure-23/Item/NewIcons/ServiceOperationCenter')

' renders the element
ServiceOperationCenterGroup('ServiceOperationCenterGroup', 'Service Operation Center Group', 'an optional tech label') {
    note as note
        the content of the group
    end note
}
@enduml
